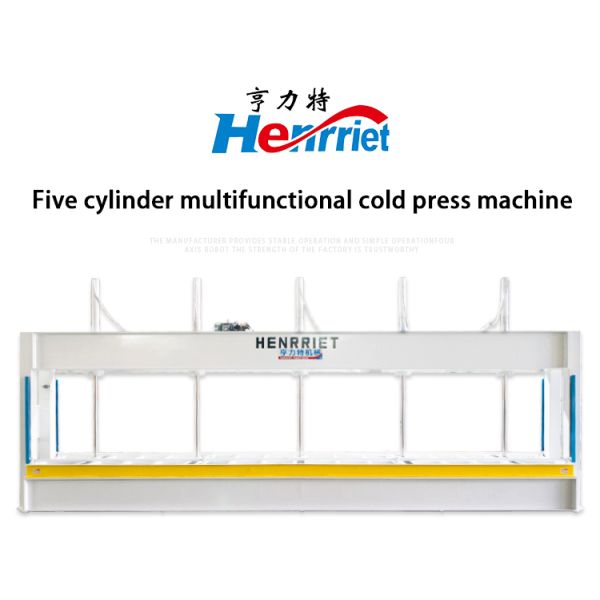

Electric Cold Press Laminating Machine with 75T Max Pressure 8000*1500mm Work Platen Size and 5.5kw Motor Power for Woodworking

  • 1
  • 2

Payment Terms : T/T

Delivery Time : 15-20Work days

Workd effctively : 1000/1300/1500/1800mm (Customizable)

Overall dimensions : 8500*1500*3700mm

Motor power : 5.5kw

Packaging Details : Film with Foam

MOQ : 1

Certification : CE、ISO 9001

Max pressuer : 75T

Brand Name : Henrriet

Oil cylinder specifcation : 100mm * 5pcs

Price : Online/offline communication

Work platen size : 8000*1500mm

Place of Origin : China

Weight (about) : 9500 kg

Contact Now

Electric Woodworking Cold Press Laminating Machine

The electric woodworking cold press laminating machine stands as a cornerstone of modern woodworking and furniture manufacturing, engineered to address the unique challenges of multi-layer composite pressing. Unlike traditional hot presses that rely on elevated temperatures to activate adhesives, this equipment achieves consolidation through precisely controlled ambient-temperature hydraulic pressure.

The system distributes force uniformly across the entire work surface, ensuring that cabinet-grade panels, multi-layer fiberboards, MDF substrates, and other engineered composites achieve ideal flatness, dimensional stability, and bond strength—all while preserving the natural structural characteristics of wood-based materials without risk of thermal degradation or heat-induced warping.

Key Features
  • Superior Production Capacity: Rapid cycles with batch-to-batch consistency. The hydraulic drive system enables rapid platen descent and ascent, significantly reducing non-productive portions of each pressing cycle.
  • Integrated Safety and Protection: Multi-layered protection with adjustable relief valve that automatically unloads the circuit when pressure exceeds safety thresholds.
  • Wide-Ranging Application Versatility: Suitable for cabinet-grade panels, multi-layer fiberboards, and medium-density fiberboard (MDF) with various decorative overlays.
  • Streamlined Maintenance and Service Support: Easy verification procedures and no-load test cycles to ensure optimal performance before each shift.
Technical Specifications
Max Pressure 75 T
Work Platen Size 8000×1500mm
Oil Cylinder Specification 100mm × 5pcs
Motor Power 5.5kw
Work Effectively 1000/1300/1500/1800mm (Customizable)
Overall Dimensions 8500×1500×3700mm
Weight (approx.) 9500 kg
Company Advantages
  • Two In-House Factories: Better prices and faster delivery with no middlemen markups
  • 30+ Senior Engineers: Custom-built solutions designed around your production needs
  • CE & ISO 9001 Certified: Global-ready equipment meeting international standards
  • 50+ Countries, 1000+ Projects: Proven experience in design and manufacturing worldwide
Service Support
  • Warranty: 1 year
  • Packaging: Film with foam
  • 24-hour customer service hotline with 48-hour response for repair needs
  • Free video training for operators and process guidance manuals
  • Lifetime technical support and software upgrade services
Product Gallery
Electric Cold Press Laminating Machine with 75T Max Pressure 8000*1500mm Work Platen Size and 5.5kw Motor Power for Woodworking
Machine Overview
Electric Cold Press Laminating Machine with 75T Max Pressure 8000*1500mm Work Platen Size and 5.5kw Motor Power for Woodworking
Scope of Application
Electric Cold Press Laminating Machine with 75T Max Pressure 8000*1500mm Work Platen Size and 5.5kw Motor Power for Woodworking

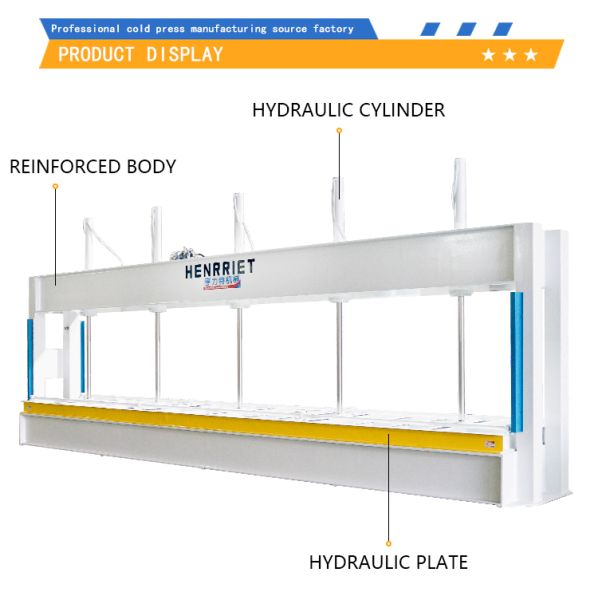

Product Display
Electric Cold Press Laminating Machine with 75T Max Pressure 8000*1500mm Work Platen Size and 5.5kw Motor Power for Woodworking
Production Workshop
Electric Cold Press Laminating Machine with 75T Max Pressure 8000*1500mm Work Platen Size and 5.5kw Motor Power for Woodworking

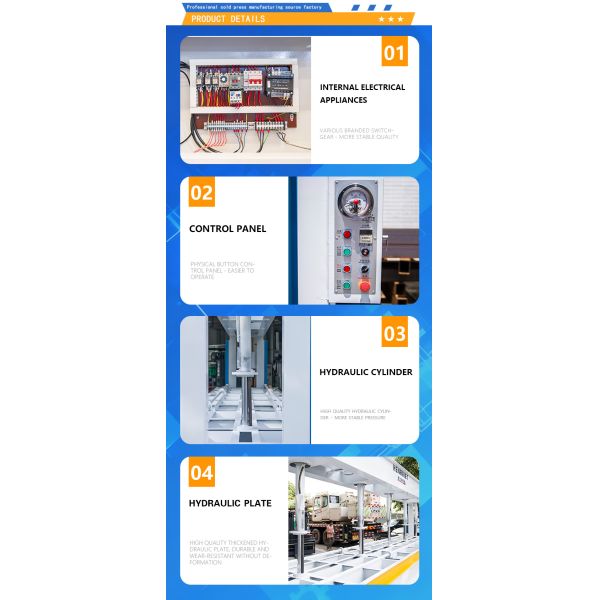

Product Details
Corporate Information
Electric Cold Press Laminating Machine with 75T Max Pressure 8000*1500mm Work Platen Size and 5.5kw Motor Power for Woodworking
Company Facility
Electric Cold Press Laminating Machine with 75T Max Pressure 8000*1500mm Work Platen Size and 5.5kw Motor Power for Woodworking
Corporate Advantages
Electric Cold Press Laminating Machine with 75T Max Pressure 8000*1500mm Work Platen Size and 5.5kw Motor Power for Woodworking
Visitors and Communication
Electric Cold Press Laminating Machine with 75T Max Pressure 8000*1500mm Work Platen Size and 5.5kw Motor Power for Woodworking
Manufacturing Process
Electric Cold Press Laminating Machine with 75T Max Pressure 8000*1500mm Work Platen Size and 5.5kw Motor Power for Woodworking
Exhibition and Exchange
Electric Cold Press Laminating Machine with 75T Max Pressure 8000*1500mm Work Platen Size and 5.5kw Motor Power for Woodworking
Packaging and Logistics
Electric Cold Press Laminating Machine with 75T Max Pressure 8000*1500mm Work Platen Size and 5.5kw Motor Power for Woodworking
Certificates and Honors
