Automatic Conveyor Track Fireproof Wooden Door Honeycomb Board Pickleball Paddle Glued Board Hydraulic Cold Press Machine
Product Description:

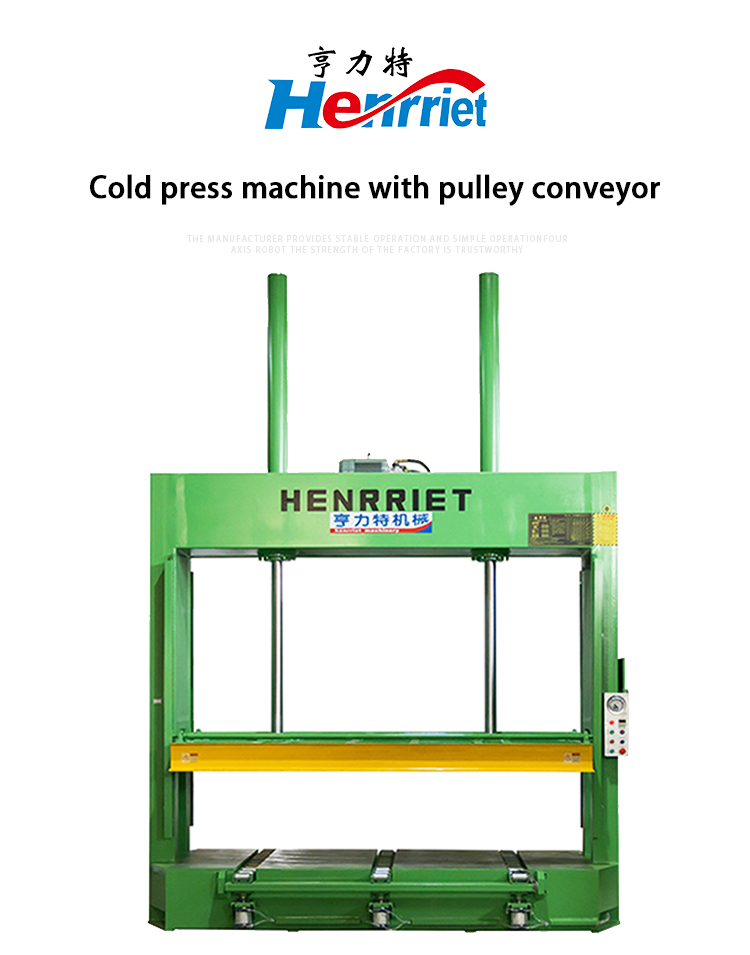

This green double oil cylinder hydraulic cold press with track is equipped with a conveyor track compared to ordinary hydraulic cold press. Accelerated the efficiency of material entry and exit, saving physical labor for people. Its working principle is that the hydraulic system converts mechanical energy into hydraulic energy, and then converts hydraulic energy into mechanical force for linear motion, achieving processes such as pressing, forming, stamping, and straightening of workpieces. Used for cold pressing or hot pressing of plywood, LVL (laminated veneer lumber), and wood plastic composite materials.
Enhanced Efficiency and Productivity
The dual-cylinder synchronous drive ensures even pressure distribution across the entire panel surface, enabling consistent and high-quality pressing results. With responsive actuation and smooth operational flow—from panel placement to final compression—the system significantly boosts daily output while maintaining low energy consumption, delivering true operational economy.
Optimized for seamless integration into dynamic production environments, the press enables swift transitions between tasks. Its efficient workflow design supports continuous operation without compromising on finish quality or layer integrity.
Safety and Reliability
Equipped with automatic overload prevention and emergency stop mechanisms, the press actively monitors pressure conditions and initiates adjustments or shutdowns when necessary. This minimizes operational risks and enhances workplace safety.
An intuitive operator panel and simplified control logic reduce training time and enable quick adoption, even for inexperienced users. Multi-layered electrical and mechanical safeguards further ensure secure and uninterrupted production.
Versatile Application Range
From standard plywood and decorative boards to specialized wood composites, this two-cylinder cold press handles a wide variety of materials with consistent results. Its flexible configuration supports panels of different sizes and thicknesses, making it an ideal solution for manufacturers with diverse product lines.
Suitable for furniture production, interior decoration, and modular construction, the machine offers the functional versatility needed to keep pace with evolving customer demands and custom orders.
Low-Maintenance Design
Built with high-quality seals and a fully enclosed fluid system, the press significantly reduces the risk of oil leakage and extends service intervals. Routine checks and component servicing are straightforward.
Machine parameters
| Maximum Pressure |
50 T (customizable) |
| Worktable Sizes |
2800mm*1300mm (customizable) |
| Maximum Processing Thickness |
1000mm, 1300mm, 1500mm(customizable) |
| Power supply |
380V/50Hz, three-phase |
| Power |
4KW (customizable) |
| Dwell time |
0-99.99 hours (Adjustable) |
| Platen lift speed |
10-12mm/s |
| Pressure accuracy |
±1% (ISO-compliant) |
| Size |
3300*1300*3800mm |
| Weight |
2300KG |
Service Support
Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline, respond to repair needs within 48 hours.
Free video training for operators and provision of process guidance manuals.
Lifetime technical support and software upgrade services.
