Dual station movable slide hot press machine with 940mm maximum pressure for carbon brazing plates and prosthetic limbs

  • 1
  • 2
  • 3

Brand Name : Henrriet

Certification : CE、ISO 9001

Place of Origin : China

MOQ : 1

Price : Online/offline communication

Payment Terms : T/T

Delivery Time : 15-20Work days

Packaging Details : Film with Foam

Maximum pressure : 940mm

Workbench dimensions : 250 T

Mobile carrier template size : 4560mmX2160mm*1 pcs

Actual composite size : 4560mm*2160mm*2pcs

Plate thickness : 4360mm*2060mm

Spacing : 1-layer

Maximum pressure Push down and up Workbench dimensions 250 T Mobile carrier template size 4560mmX216 : 100mm

Motor power of hydraulic system : 3kw

Oil cylinder specification : 7.5kw

Heating system power : 8pcs*150mm

Power for entering and exiting the    movable sliding platform : 72KW

Cooling method : 2.2KW*4pcs

Control system : 6-power refrigeration unit

Maximum temperature : PLC+touch screen

Total power : 80℃

Height of the movable workbench above   the ground : 73.3KW

Contact Now

Dual Station Movable Slide Hot Press Machine
Product Overview

This cutting-edge hot press solution fuses a central hot press unit with a dual-stage slide table conveyor, orchestrating a fluid production rhythm for high-output manufacturing. Its structural blueprint seamlessly blends a meticulously engineered hot press frame, twin dynamic slide tables, a harmonized conveyor network, hydraulic lifting modules, and a unified control system.

The bifurcated layout partitions the workflow into three distinct realms: primary material preparation, secondary material staging, and active compression zones. Operators can load and unload materials at one station while the counterpart undergoes thermal compression, facilitating uninterrupted "load-press" cycles. Upon completion of the compression phase, the slide table autonomously transitions, eradicating the idle intervals inherent in single-station setups.

Key Features
Superior Production Capacity

Optimized Production Throughput. The system's hallmark is its dual-station alternating workflow, where slide tables glide seamlessly between preparation and compression zones with minimal transition latency. Integrated with an automated conveyor framework, this setup enables end-to-end automation—from panel feeding and alignment to curing and discharge. The tight synchronization across processes truncates production cycles, metamorphosing batch processing into a fluid, non-stop operation.

Integrated Safety and Protection

Engineered for high-temperature, high-pressure environments with dual-station dynamics, the system incorporates:

  • Universal emergency shutdown: Any emergency stop button instantly severs power, hydraulics, and heating
  • Dual limit protection: Electronic sensors and mechanical hard stops avert overtravel
  • Conveyor safety interlocks: Overtravel detection and deviation correction systems
  • Hydraulic overload safeguards: Pressure thresholds trigger automatic depressurization
Wide-Ranging Application Versatility

The system excels in crafting superior wood veneer panels including solid wood lamination on MDF and customized batch flexibility. The dual-station independent operation adapts to small-batch, high-complexity orders while maintaining precise temperature/pressure control to preserve natural grain textures.

Easy Maintenance and Technical Support

Comprehensive maintenance protocols including pre-operation checks, mechanical lubrication, hydraulic health monitoring, and sensor calibration to ensure optimal performance and longevity.

Technical Specifications
Maximum pressure Push down and up
Workbench dimensions 250 T
Mobile carrier template size 4560mm × 2160mm × 1 pc
Actual composite size 4560mm × 2160mm × 2 pcs
Plate thickness 4360mm × 2060mm
Number of layers Fixed workbench: 50mm × 1 piece
Mobile loading template: 70mm × 2 pieces
Spacing 1-layer
Heating cycle motor power 3kw
Motor power of hydraulic system 7.5kw
Oil cylinder specification 8 pcs × 150mm
Heating system power 72KW
Power for movable sliding platform 2.2KW × 4 pcs
Cooling method 6-power refrigeration unit
Control system PLC + touch screen
Maximum temperature 80℃
Total power 73.3KW
Height of movable workbench above ground 940mm
Company Advantages
  • Two In-House Factories: Better prices and faster delivery with no middlemen
  • 30+ Senior Engineers: Custom-built solutions for your production needs
  • CE & ISO 9001 Certified: Global-ready equipment meeting international standards
  • 50+ Countries, 1000+ Projects: Proven experience in design and manufacturing
Service Support
  • Warranty: 1 year
  • Packaging: Film with foam
  • 24-hour customer service hotline
  • Respond to repair needs within 48 hours
  • Free video training for operators
  • Process guidance manuals provided
  • Lifetime technical support and software upgrades
Scope of Application
Dual station movable slide hot press machine with 940mm maximum pressure for carbon brazing plates and prosthetic limbs

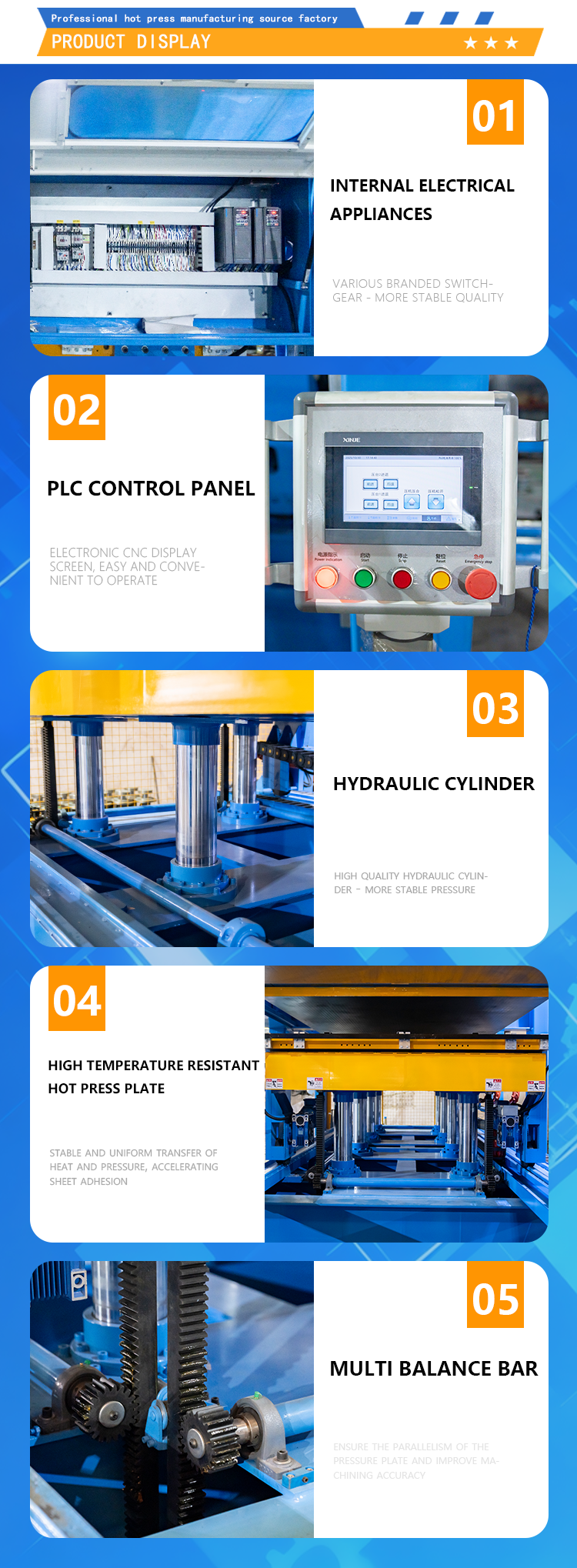

Product Display
Dual station movable slide hot press machine with 940mm maximum pressure for carbon brazing plates and prosthetic limbs
Production Workshop
Dual station movable slide hot press machine with 940mm maximum pressure for carbon brazing plates and prosthetic limbs
Product Details
Dual station movable slide hot press machine with 940mm maximum pressure for carbon brazing plates and prosthetic limbs
Corporate Advantages
Dual station movable slide hot press machine with 940mm maximum pressure for carbon brazing plates and prosthetic limbs
Visitors and Communication
Dual station movable slide hot press machine with 940mm maximum pressure for carbon brazing plates and prosthetic limbs
Production Level and Manufacturing Process
Dual station movable slide hot press machine with 940mm maximum pressure for carbon brazing plates and prosthetic limbs
Exhibition and Exchange
Dual station movable slide hot press machine with 940mm maximum pressure for carbon brazing plates and prosthetic limbs
Packaging and Logistics
Dual station movable slide hot press machine with 940mm maximum pressure for carbon brazing plates and prosthetic limbs
Certificates and Honors
Dual station movable slide hot press machine with 940mm maximum pressure for carbon brazing plates and prosthetic limbs
